Kodo Instruction Sets: Ramp Cart and Cozy Cubby

Flat-pack assembly instructions for two Kodo Kids classroom products: a mobile ramp cart and a hexagonal cubby.

Line drawing of the assembled Ramp Cart: a plywood cart on four casters with a dowel handle, side cutouts and divided storage bays
Year
2015
Client
Kodo Kids
Disciplines
Furniture · Assembly Instructions
Specs
Flat-pack plywood · Exploded-assembly animation · Illustrated parts lists

Two Kodo Kids products that ship flat and go together in a classroom. The Ramp Cart stores and moves ramp accessories between rooms; its source files include the CAD assembly, an exploded-assembly animation and six pages of illustrated instructions. The Cozy Cubby is a hexagonal enclosure that assembles with slotted panels and screws, with a two-page illustrated guide.

  • Ramp Cart instructions parts page showing lettered plywood panels A through Q with quantities, plus casters and two screw types

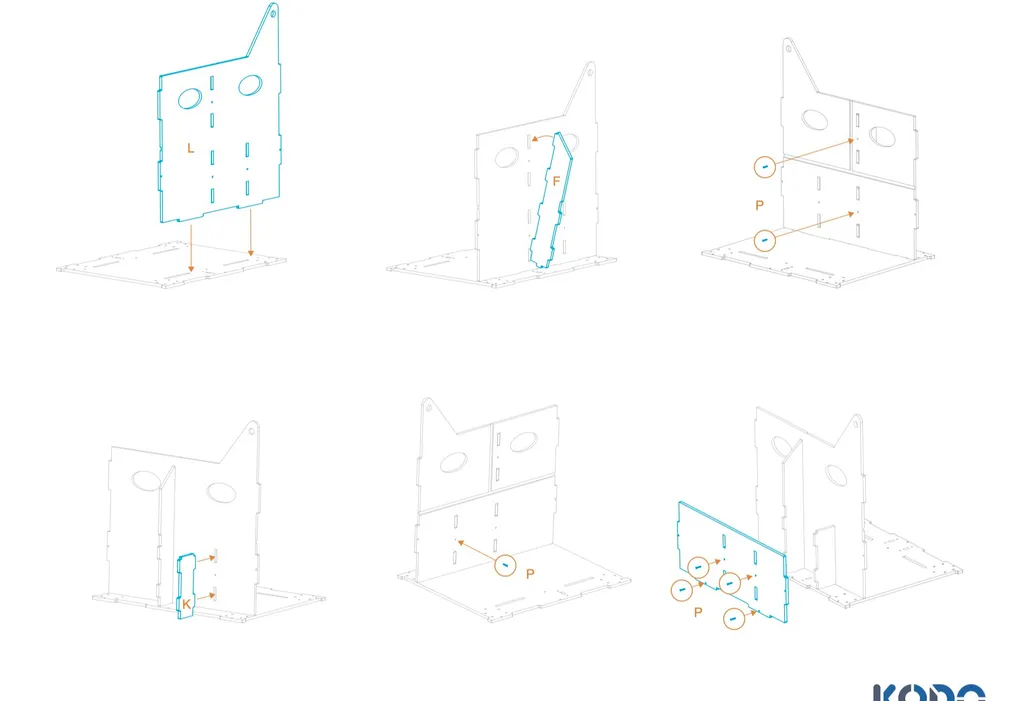

  • Ramp Cart six-step instruction panel: side panel L and brace F set into the base, with screw callouts highlighted in orange

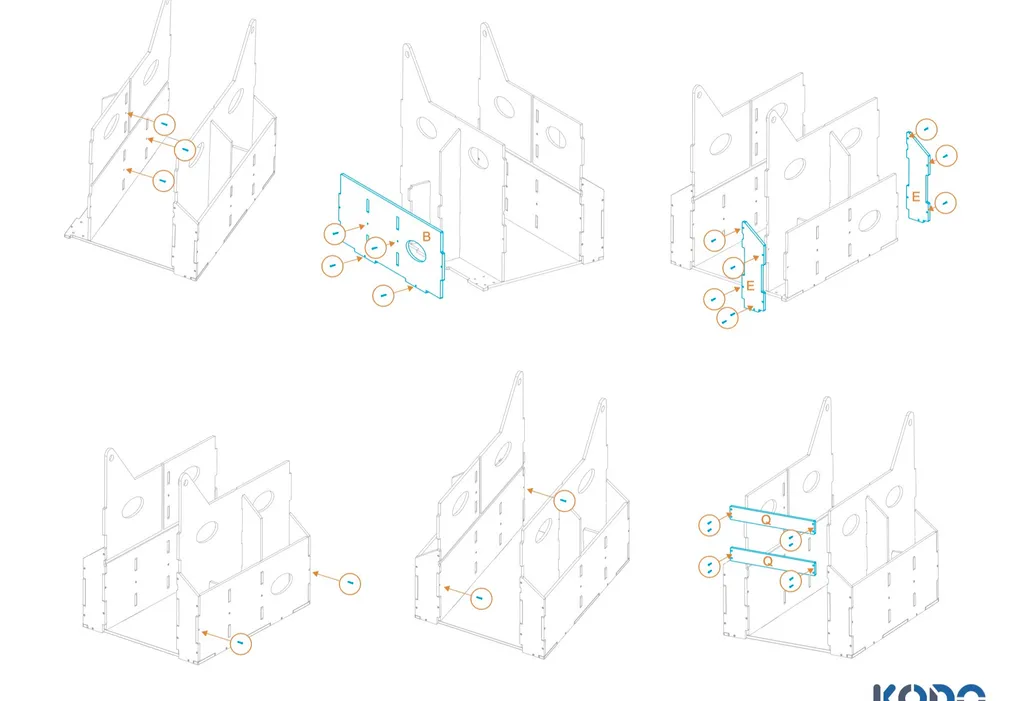

  • Ramp Cart six-step instruction panel adding panels B and E and cross-members Q to the cart body

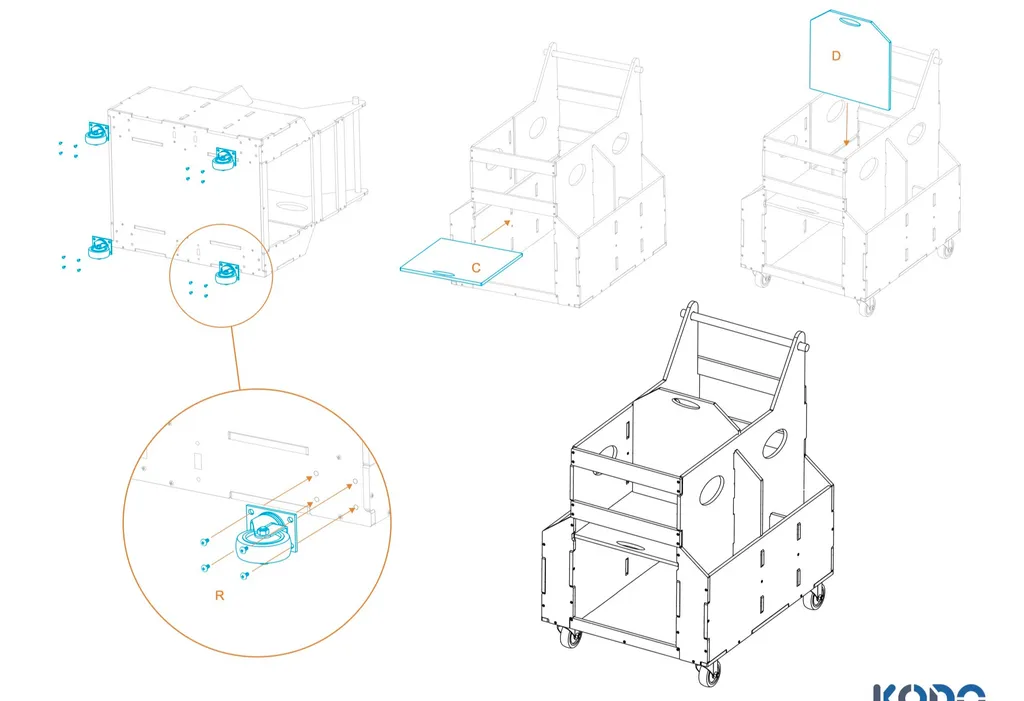

  • Final Ramp Cart instruction page: casters screwed to the base with a detail callout, shelves C and D slid in, and the finished cart

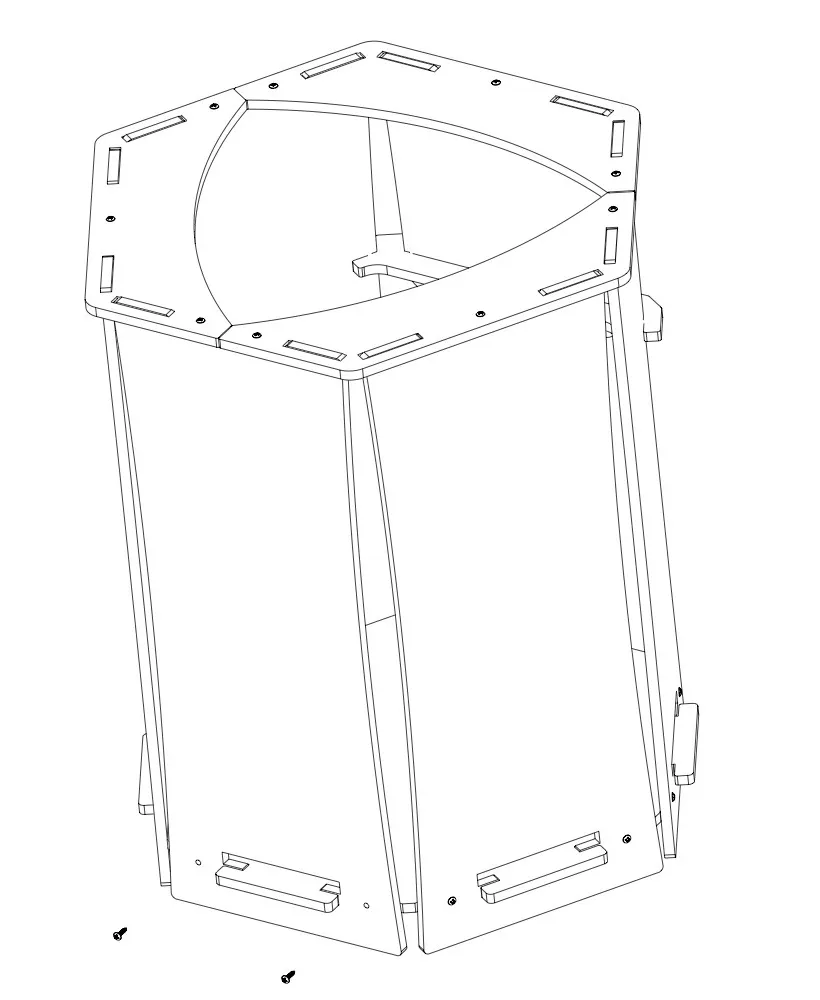

  • Isometric CAD line drawing of the assembled Cozy Cubby: a hexagonal enclosure of curved wall panels topped by a hexagonal ring

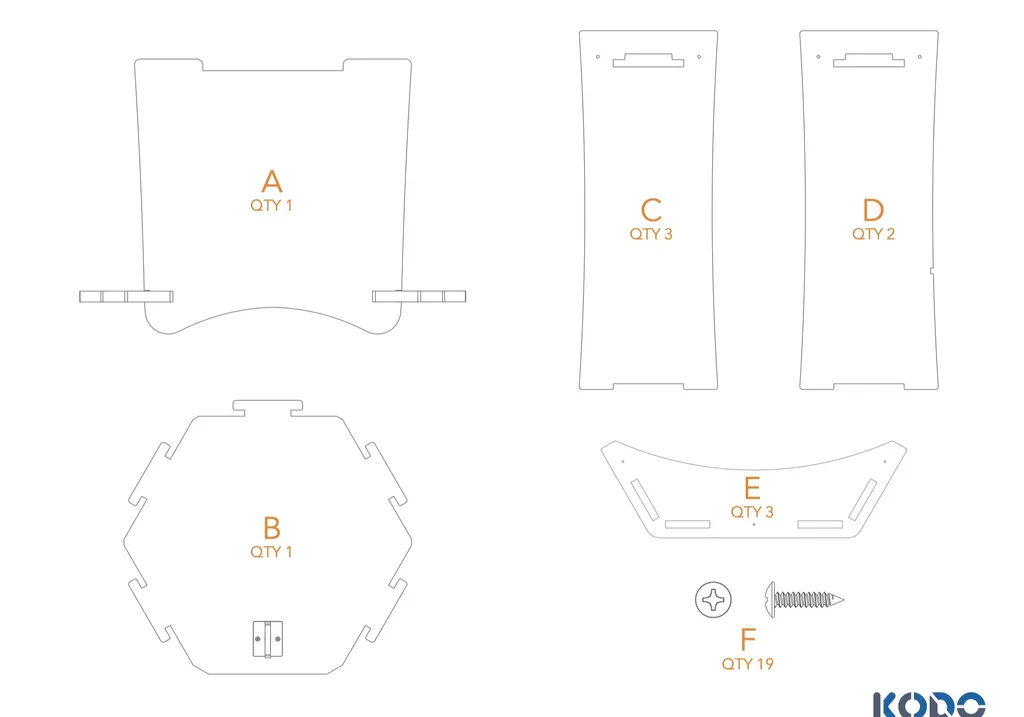

  • Cozy Cubby assembly guide parts page showing door panel A, hexagonal floor B, wall panels C and D, top rails E and screws F with quantities

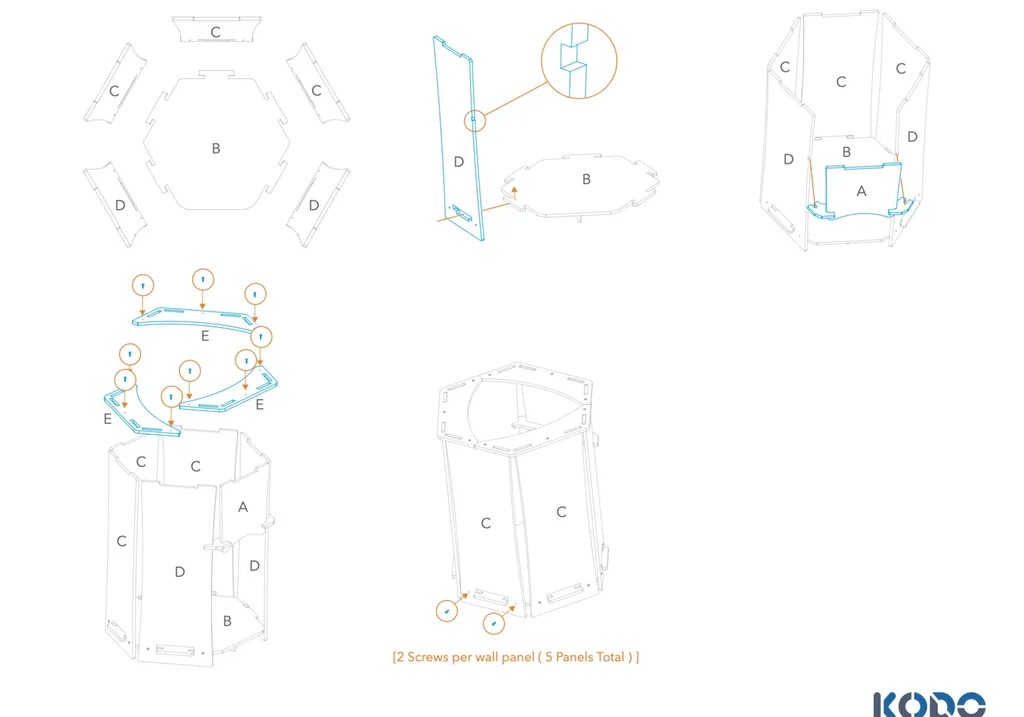

  • Cozy Cubby assembly steps: wall panels slotted into the hexagonal floor, door panel added, top rails screwed on, and the finished cubby
