Remington Stock Concepts

Marker concept sketches for adjustable, folding and skeleton rifle stocks.

Marker sketch of a tan skeleton stock with an adjustable cheek riser and buttpad, with arrows showing the directions of adjustment
Year
2013
Client
Remington
Disciplines
Defense · Sketching

A set of concept sketches exploring adjustable, telescoping, folding and skeleton stock forms. About 30 sketches exist; six are shown here.

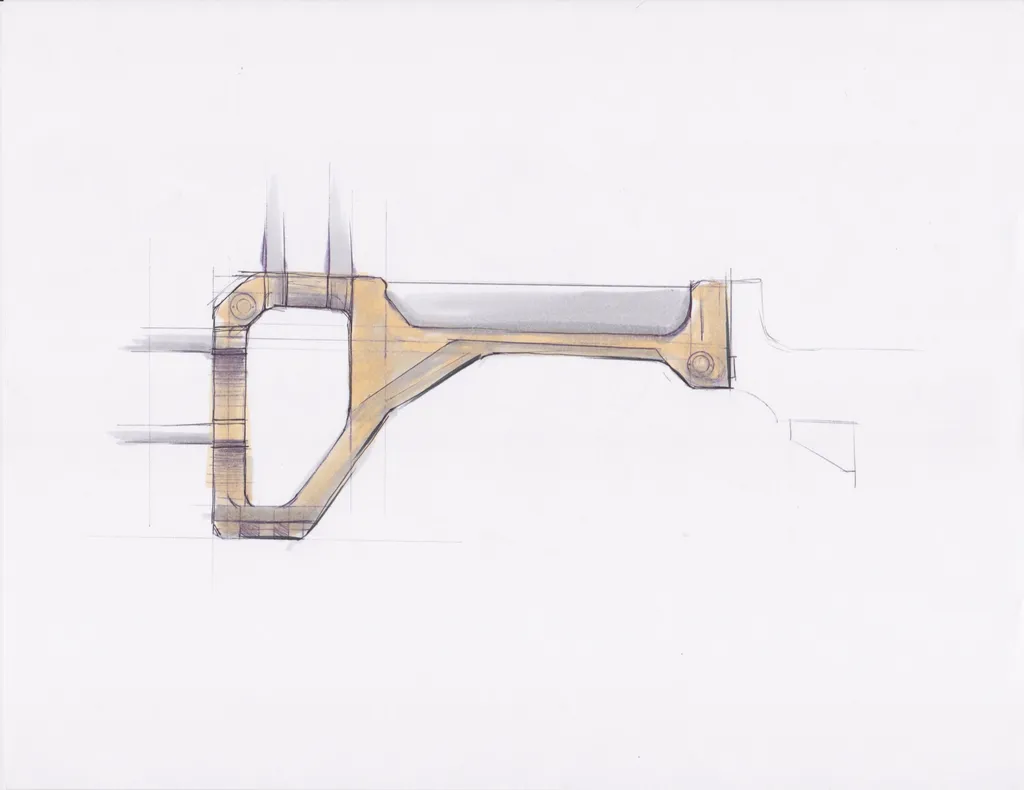

  • Marker sketch of a tan open-frame skeleton stock in side view

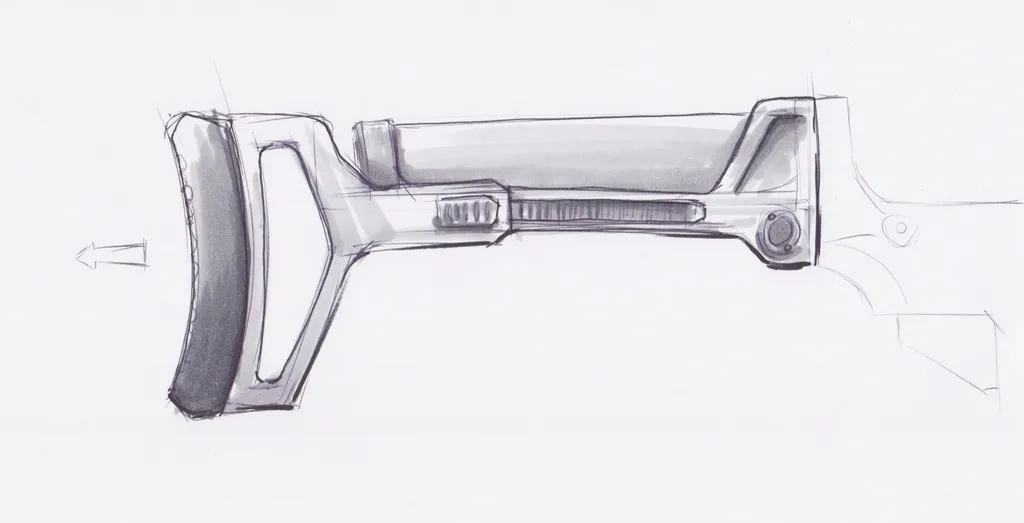

  • Marker sketch of a gray telescoping stock with a curved buttpad and adjustment slots

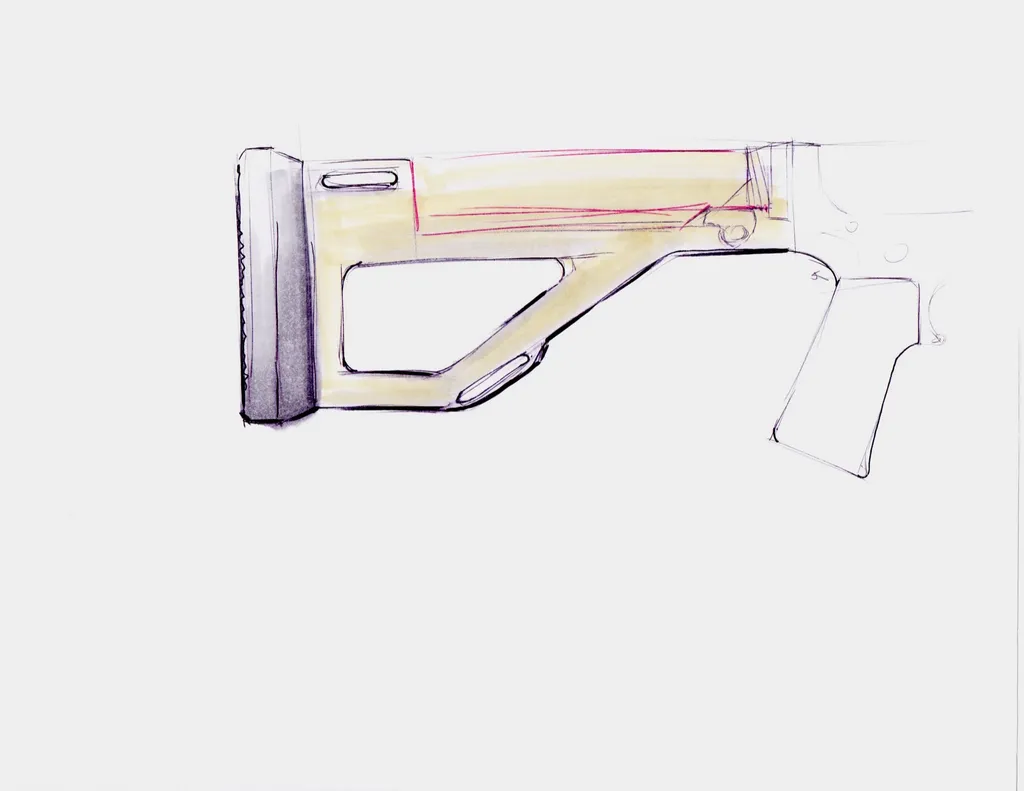

  • Marker sketch of a tan stock with an angled lower brace and a dark buttpad, attached to a line-drawn receiver and grip

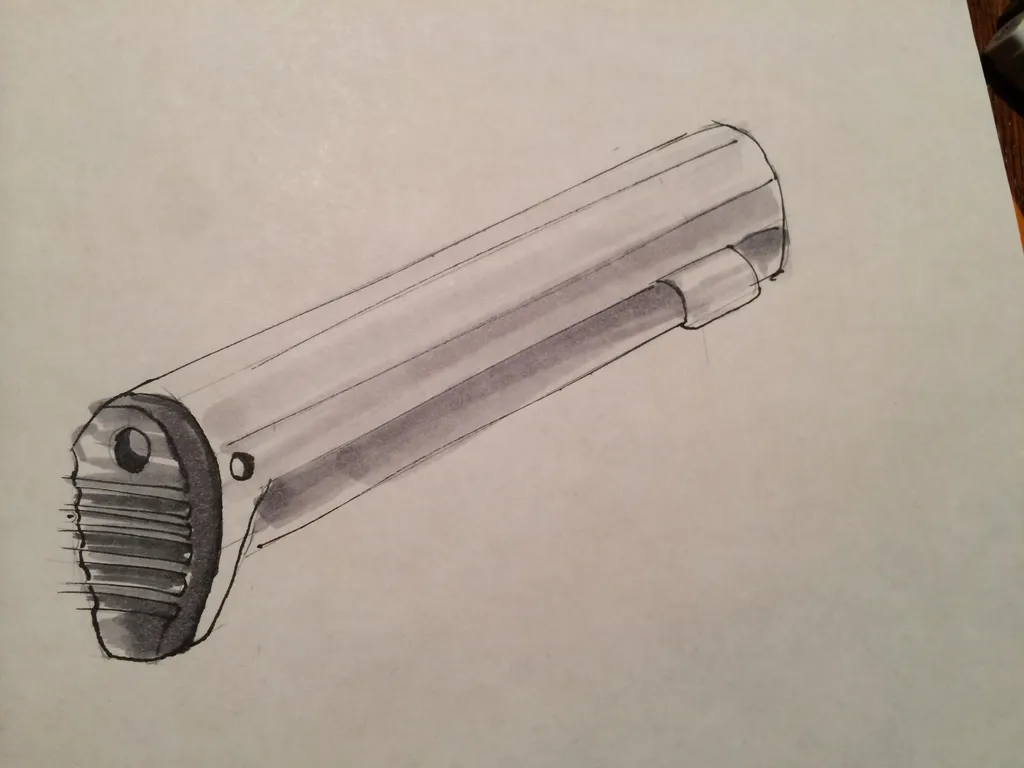

  • Shaded pencil sketch of a tube-style stock with a ribbed buttpad

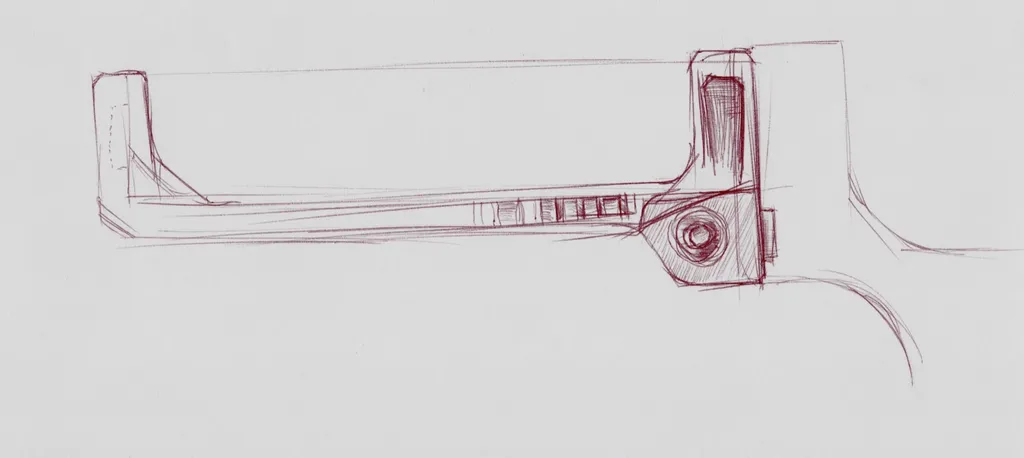

  • Red and pencil sketch of a thin folding stock with a hinge block at the receiver

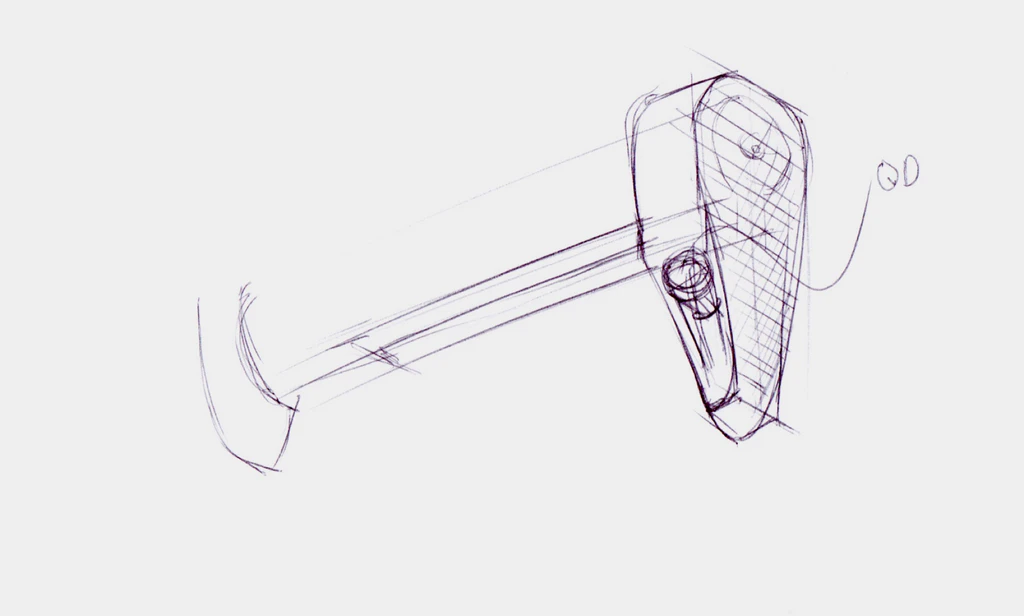

  • Pen sketch of a stock in perspective with a wide triangular buttpad
